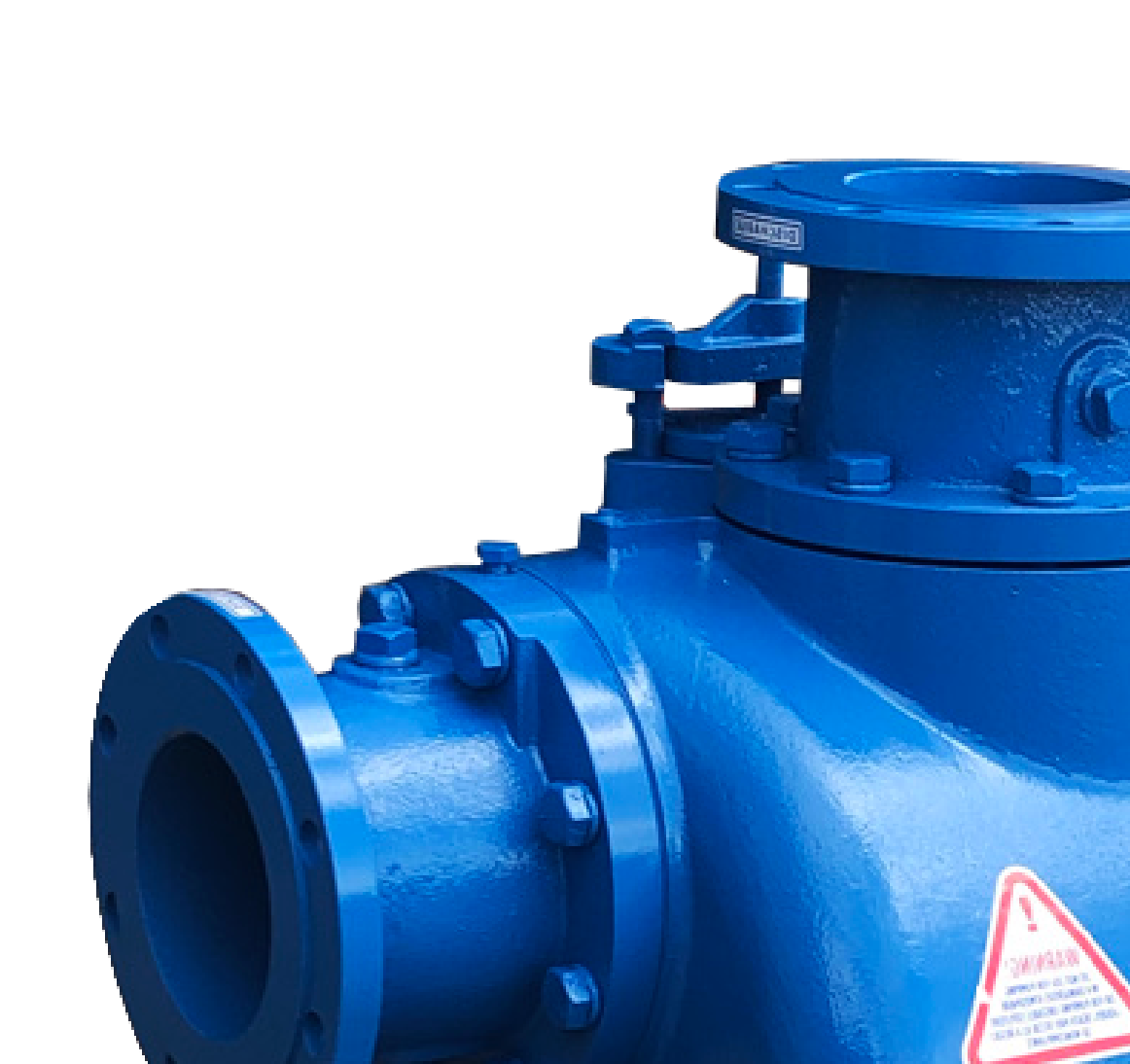

T-PRIME self priming centrifugal pumps
Inspect, Clean, & Operate – Without Disconnecting Pipework
T-PRIME Series pumps are a drop-in replacement for the following Gorman-Rupp® pumps: T-Series®, Super T-Series®, and U-Series.
MAX FLOW RATE
3400 GPM
MAX SOLIDS HANDLING
3″ DIAMETER
MAX HEAD
130 FT
AVAILABLE MATERIALS
Ductile Iron
316 Stainless Steel
Alloy 20
CD4MCu
316 Stainless Steel
Alloy 20
CD4MCu
Download Brochure
FEATURES
Shimless external impeller adjustment extends lifetime
An exclusive system to externally adjust the impeller clearance without disassembling the pump. With the use of a fixed or allen wrench, simple adjustments can optimize pump efficiency while extending the life of the pump.
Fast & Easy Maintenance
A back pullout rotating element allows for quick checks and easy upkeep on pumps. Blockages can be removed and the pump can return to service in minutes. Impeller, seal, and other key elements can also be accessed through cover plate opening for inspection or service.
REMOVABLE INSPECTION/CLEAN OUT PORT
Unscrew and lift the handles of the inspection cover and perform the cleaning operation without removing the casing or disconnecting the pipework.
MODELS
GP Series
T-PRIME GP model pumps have been developed to handle solids between 1 3/4” – 3” in size depending on the pump dimensions. Stocked in sizes from 2” – 12” intake manifold dimension.
GH Series
GH pumps are developed as a higher pressure version of the GP Series pump that allows smaller solids to pass through than the GP Series. The GH Series can handle solids between 13/16”-1 1/4” in size based on the dimensions of the pump. Stocked in 3”, 4”, and 6” intake manifold dimensions.
*T-Series®, Super T-Series®, and U-Series® are a registered trademark of Gorman-Rupp Pumps® – A Subsidiary of The Gorman-Rupp Company®. Thomas Pump & Machinery, Inc. has no affiliation with Gorman-Rupp Pumps®, Gorman-Rupp® engineering, or The Gorman-Rupp Company®.
