Thomas Pump

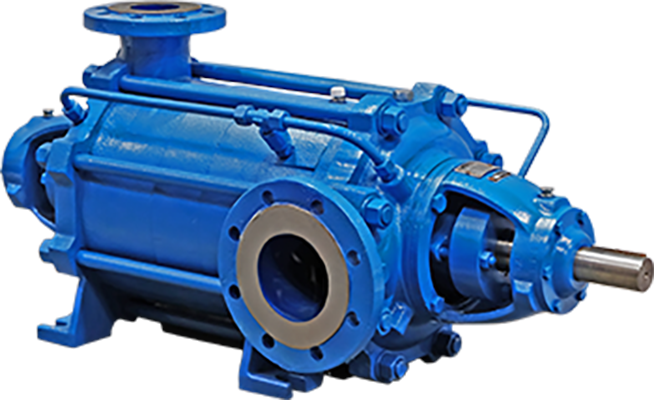

T-JET multi-stage centrifugal pumps

The ideal pump for power and boiler feed applications

With capacities up to 4000 GPM and total dynamic head up to 1800′, Thomas Pump’s T-JET line of multi-stage pumps are perfectly suited for your high-flow, high-pressure needs.

MAX CAPACITY

4000 GPM

MAX DELIVERY

100 BAR

MAX HEAD

1800 FT

AVAILABLE MATERIALS

Cast Iron
Nodular Cast Iron
Stainless Steel

Download Brochure

FEATURES

Flexible Coupling

An optional flexible coupling allows the T-JET series pumps to connect to driving machines, generally for use on an electric motor.

Low Net Positive Suction Head Design Prevents Cavitation

Safe for high-temperature applications

MODELS

TJ Series

TJ Series pumps are horizontally and between bearings mounted. Suction flange PN16 and Delivery flange PN40. The shaft is supported by two, grease lubricated, antifriction bearings.

TJR Series

TJR Series pumps are horizontally and between bearings mounted. Suction flange PN16 and Delivery flange PN64. The shaft is supported by two, oil lubricated, antifriction bearings.

TJTK Series

TJTK Series pumps are vertically mounted. Suction flange PN16 and Delivery flange PN40. The shaft on the suction side is led in slide bearing lubricated by the pump liquid, on the delivery side is supported by the motor bearing. Motor and pump are connected by a stool and a rigid coupling.

TJTKK Series

TJTKK Series pumps are horizontally and between bearings mounted. PN25 Suction flange and PN100 Delivery
flange. Suction and Delivery nozzles are easily turned in 90° steps. Mechanical seal chamber can also accommodate API682 seals. Bearing supports are designed for heavy duty applications and with separate oil chamber.
